Paper Bag Bottom Gluing Machine

Product name : Paper Bag Bottom Gluing Machine

Product No. : BY-550HDJ

Monthly Output : 15 Sets

Quality Garantee : One Year

Terms of Payment : T/T,LC at sight

Installation&Training : Available

←[Previous Product]

Online Inquiry

Email Us

Details:

The Paper Bag Bottom Gluing Machine is to glue the manually-folded bag bottom. It delivers the bag bottom to the connected device by vacuum suction. The bag bottom will be pasted by water soluble glue after being positioned.

Hotmelt glue system is optional.

Product Description:

BY-550HDJ Paper Bag Bottom Gluing Machine could paste the bag bottoms and has completely changed the traditional production line. It adopts water glue to avoid glue leakaging.Machine delivers the bag bottom with automatic feeding by vacuum suction. The bag bottom will be pasted by water soluble glue after being positioned. With the frequency control of motor speed, it can adjuct the glue thickneed and position according to requirement. It is with high precision , fast speed and easy operation.It can produce high quality paper bags. It is an ideal machines in paper bag production line.

Technical parameter:

Paper gram weight	100-300g
Bag Width	150-320mm
Bag Length	220-550mm
Bag bottom width	50-150mm
Speed	70-100pcs/min
Glue type	Water-soluble cold glue
Suitable paper	Kraft paper, Art paper, White cardboard, Laminated paper
Total power	2.05KW 380V
Machine dimension	5300mmX1150mmX1250mm (LWH)
Machine weight	1.6T

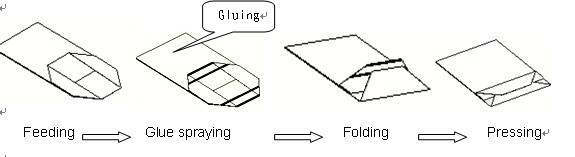

Handbag Bottom Gluing Process:

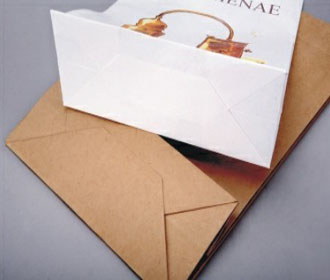

Product Output:

Thank you for your time for visiting our website.
Pls send us inquiry to get the latest product information if you are interested in our machines.

Remarks:
Machine can be designed for special/big size. One side pasting / Two size pasting are availale.
Pls contact us freely for more information.
