Die Cutting Machine

Product name : Die Cutting Machine

Product No. : ML-930

Monthly Output :

Quality Garantee :

Terms of Payment :

Installation&Training :

←[Previous Product] [Next Product]→

Online Inquiry

Email Us

Details:

ML-930 Creasing and Die Cutting Machine

Inner size for board frame(mm)	930X660
Work speed(pcs/min)	25±2
Wire cutting length(mm)	﹤26
Net weight/gross weight(kg)	3800
Motor power(kw)	4
Flat board distance adjustment(mm)	26±6
Overall dimension (mm)	1950x1690x1740

Application:

Flat indentation linear cutters are mainly used for impressing packing printing products like wine trademarks,catalogues,paper boxes and
cases,etc,which are made ofpaperboards,plastic and leather,etc.The machine is characterized by compact construction.fine manufacture,
great power for cutting by impressing,higher precision, convenience and safety in operation.

Main features of construction:

1.The body is made of completely high quality cast material,featuring in higher strength and sound stiffness.

2.The slide bearing is made of quality cooper alloy,featuring in strong loading capacity and good abrasive performance.

3. Single chip type electromagnetism clutch is of sensitive and reliable in motion.It can be changed into air clutch according to customer’s
requirement.

4.The operation height is reasonable and the angle of press frame is greater.

5.The electric system is finely designed and of high security coefficient.

6.It can continually cut by pressing,cut by single pressing and cut by pressing after being turned on.The delay time can be adjusted freely.

7.The safety protection is designed as per CE standard.

8.The automatic oil pump can centrally supply oil according to time and the time can be adjust freely.

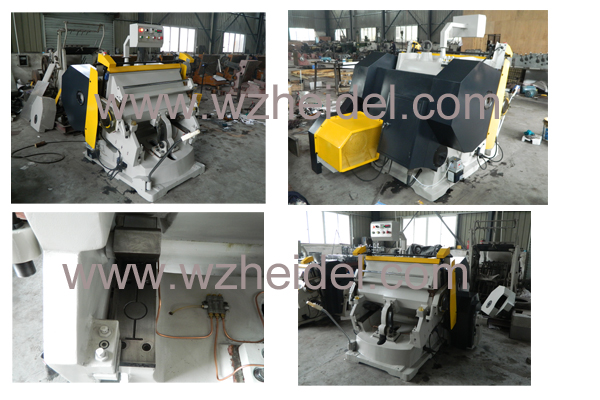

More Picutures:
