Cement Valve Paper Bag Making Machine

Function:
Having adsorbed new technology from home and abroad,we successfully developed cement valve paper bag making machine with our own design and unique craft. With automatic tube feeding ,creasing, bottom pasting and perforating, the machine complete the cement paper bag production by means of PLC control system..It is an ideal production line to make cement valve paper bags.

Technical Parameters:

Tube Width	30-55cm
Tube Length	40-80cm
Bottom Width	8-12cm
Speed:	50-70pcs/min.( can reach to 100pcs/with another feeding system)
Glue type	Water-soluble cold glue
Total power	5KW, 380V
Machine weight	3500kg
Machine dimension	8000mmX1300mmX1250mm (L*W*H)

Working Process:

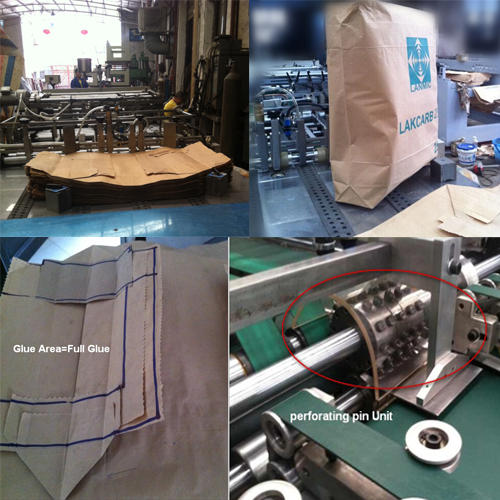

More Pictures：
