Paper Bag Tube Forming Machine with top folded working video: Email us at sales@wzheidel.com for full details.
Product Description:

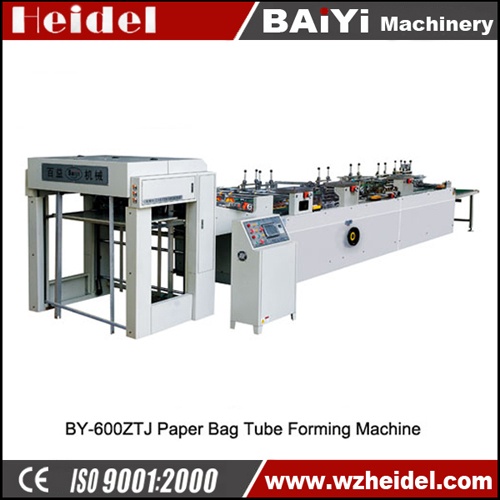

BY-600ZTJ Bag Tube forming Machine adopts die-cut single sheet paper to make bag tube. It features a continuous function of automatic paper delivery (by feeder), line aligning (by guide), gluing, tube formation, impressing and bag tube output. With high precision, this machine can make handbags with different specifications. This machine is an ideal equipment of manufacturing high-standard handbag.Machine is equipped with cold glue system. ( Hotmelt glue system is optional)
Paper gram weight
|
120-300g
|
Max.Paper Sheet
|
550X1020mm
|
Min.Paper Sheet
|
280X580mm
|
Bag Width
|
150-400mm
|
Bag bottom width
|
60-160mm
|
Speed
|
110-130pcs/min
|
Glue type
|
Water-soluble cold glue (Hot-melt glue system is optional)
|
Suitable paper
|
Kraft paper, Art paper, White cardboard, Laminated paper
|
Total power
|
6.5KW 380V
|
Machine dimension
|
8800mmX1800mmX1580mm(L*W*H)
|
Machine weight
|
3500kg
|

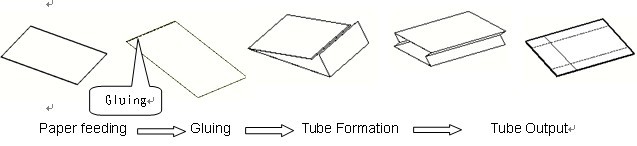

Handbag Forming Process:

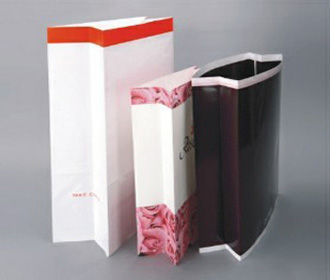

Product Output:
